Site-scale capacity, one box at a time
The AquaCore Cloud P series turns the data center into freight: power, cooling, racks, fire protection and cabling factory-integrated into 20FT and 40FT containers, tested before shipping, and spliced box by box into a building. The pad is the project; the modules are the product.
Factory, freight, foundation, phase two
Four steps that replace a construction program. Every one of them happens on our side of the fence except the last.
Built in the factory
Power, cooling, IT racks, fire protection and cabling integrated and tested as one unit before it ever sees a truck.
Shipped as freight
Standard 20FT and 40FT ISO bodies travel like any container: by road, by sea, to sites with minimal infrastructure.
Commissioned as one
Craned onto the foundation, cabled and brought up as a single pre-commissioned unit: rapid on-site install, not on-site construction.
Grown box by box
Single-box or multi-box splicing adds capacity in phases, so the site scales with the load instead of ahead of it.

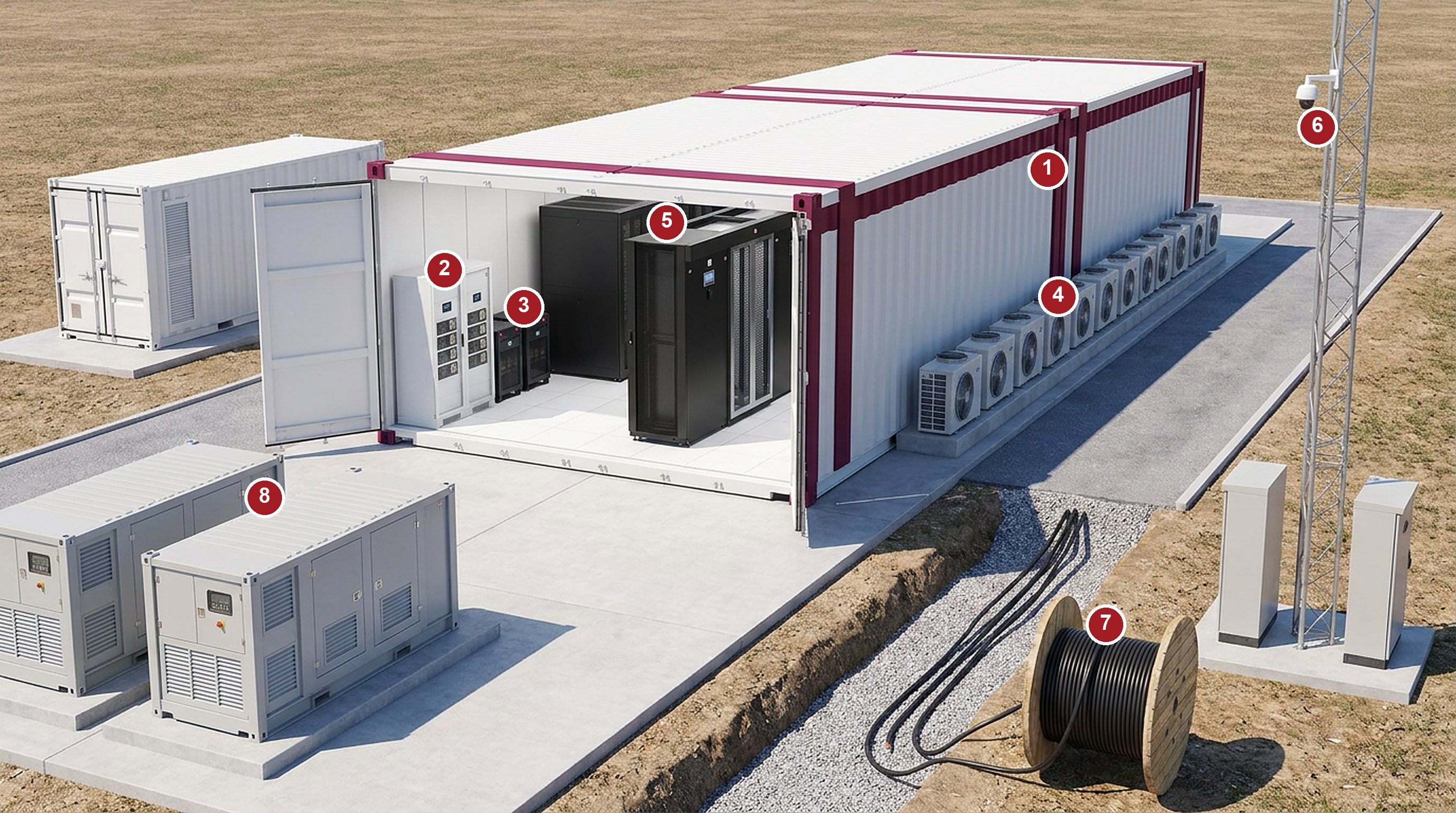

Anatomy of a FIBER OCEAN prefab pad
Eight layers, one supplier, one supervision plane. Every numbered element is a FIBER OCEAN line, spliced into one building on one foundation.
| Layer | What we deploy | Product line |
|---|---|---|
| 1. The Cloud P block | Prefabricated, pre-commissioned all-in-one containers in 20FT and 40FT, joined by single- or multi-box splicing | AquaCore Data Centers |
| 2. Modular power | Hot-swap 30 / 50 / 100 kW UPS modules up to 1.6 MW in a single rack, with a high-voltage DC option | UPS Systems |
| 3. Battery autonomy | LFP lithium iron phosphate as standard, VRLA as the option, sized to the block’s ride-through | Batteries |
| 4. Close-coupled cooling | Row-level precision cooling with EC fans, inverter compressors and CFD-optimized airflow; optional indirect free cooling | Cooling Systems |
| 5. White space | 42U shock-absorber cabinets with rear-mounted PDUs behind a closed cold / hot-aisle partition | IT Racks & Smart PDU |
| 6. Supervision | FO-MC4.0 watches power, environment, video, access and U-position from one integrated collector | DCIM & Monitoring |
| 7. Connectivity | MPO/MTP trunks from 8 to 24 fibers wire each block for 10G to 100G without re-pulling | Fiber Optics and Accessories |
| 8. The powered pad | Gensets to 3,300 kVA at 11 kV and containerized BESS to 1 MWh stand behind the whole site | Diesel Generators |
An optional NOC container can be added at the back of the block for on-site supervision.
What the Cloud P series is specified to do
The engineering envelope of the prefab / container series, as documented. Every project is configured inside it.
| Parameter | Value |
|---|---|
| Format | AquaCore Pre-fab (Cloud P) all-in-one containerized data center; prefabricated, pre-commissioned, factory-tested single-unit delivery |
| Container sizes | 20FT and 40FT ISO container modules; single-box or multi-box splicing |
| Deployment | Standardized, factory-integrated modules; expandable box by box in phases; rapid on-site install with minimal infrastructure |
| Max cabinet power density | 10–40 kW per cabinet |
| Racks | 42U shock-absorber cabinets with rear-mounted PDU; closed cold / hot-aisle partition; electrostatic raised floor |
| Airflow organization | Cold / hot-aisle separation with close-coupled cooling and horizontal air supply to eliminate hot spots |
| Cooling | Row-level / in-row precision cooling with high-efficiency EC fans, inverter compressors, EEV and smart controller; CFD-optimized airflow |
| Free cooling | Optional indirect evaporative / indirect free cooling to further reduce PUE |
| Operating range | −40°C to 55°C |
| Power system | Integrated intelligent power distribution; modular UPS with high-voltage DC option; branch-circuit protection, load balancing and energy metering |
| UPS modules | Hot-swap modular UPS (30 / 50 / 100 kW modules); capacity up to 1.6 MW in a single rack |
| Battery | LFP (lithium iron phosphate) battery solution; VRLA option |
| Container structure | Customizable body; internal thermal insulation, waterproof, fireproof, dustproof, heat-, electromagnetic- and sound-insulated; wall, ceiling and floor panels |
| Anti-seismic | Dual-frame anti-vibration structure; 18-bend seismic frame (static bearing 1800 kg); 20# channel base-bolt fixing; DIN EN10130 |
| Fire suppression | FM200 / Novec 1230 clean-agent gas with heat & smoke sensors, audible & visual alarms and integrated gas piping; heptafluoropropane for switching power cabinets; automatic / manual activation |
| Monitoring (DCIM) | Centralized monitoring over SNMP / Modbus / BacNet with web, email, SMS and phone alerts; power, micro-environment and security views |
| Environment & security | Temperature & humidity, smoke detection, water-leak detection, emergency ventilation, video surveillance, access control and emergency stop |
| Integrated systems | Power distribution, cooling, IT racks, fire protection, integrated cabling, lightning protection & grounding |
| Certifications | ISO 9001 · ISO 14001 · CE |
From first box to full campus
The same blocks, composed for the way sites actually grow.
The campus from zero
Foundations, then boxes: a multi-module building rises in weeks of placement instead of a construction program, with the powered pad around it.
The box-by-box expansion
Multi-box splicing adds the next module to the live building; capacity follows the load curve one container at a time.
The site nobody wanted
Anti-seismic dual-frame bodies and cooling rated from −40 to 55 °C put real capacity on remote, off-grid and extreme sites.
The annex on the car park
When the building is full, the next hall goes on the pad outside: pre-commissioned modules beside the existing facility.
The factory is the quality plan
The details that make the hundredth box behave like the first.
Pre-commissioned, not promised
Each unit ships waterproof, shockproof and corrosion-resistant, integrated and factory-tested before delivery.
Fire protection built in
FM200 / Novec 1230 suppression is part of the module, engineered with the airflow, not added after handover.
Engineered for bad postcodes
Anti-seismic dual-frame structure to DIN EN10130, thermal insulation, and operation from −40 to 55 °C.
Cooling that earns its PUE
Close-coupled in-row units with EC fans and inverter compressors, CFD-optimized airflow, and optional indirect free cooling.
Power that grows in modules
Hot-swap 30 / 50 / 100 kW UPS modules to 1.6 MW in a single rack, with high-voltage DC as an option.
One supervision plane
FO-MC4.0 watches every spliced box from one collector, with the whole pad reporting to the same operating center.
Week one on the pad, fully supervised
Illustrative feed. Every event type is documented FO-MC4.0 or S3 capability: access control with face capture, environment sensing, main power alarms, U-position acquisition, and alarm and energy reporting, with 24/7 support behind the platform.
Bring us your site plan
Land, load, growth curve and grid situation. Our engineers return a module count, a splicing sequence, a powered-pad design and a quotation.
