Every cabinet, sensor and door on one platform

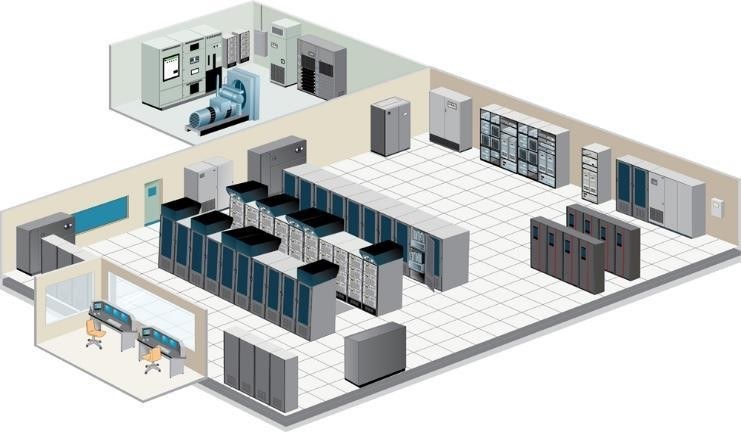

FIBER OCEAN data room monitoring connects cabinets, sensors and operational functions across the server room and links them in real time to the central operating center: enhanced control, improved efficiency and proactive management of your data environment.
What this solution delivers
One unified operating and communication platform for the whole data center infrastructure: power system, environment, security, IT assets and energy, with asset, capacity and energy-consumption management that lifts resource utilization and O&M efficiency.
12,000 measurement points
Full-scenario dynamic environment monitoring for small and medium rooms and every micro-module format.
One-stop management
Power distribution, environment, video, access control and U-position handled by a single system.
Local, Web and mobile
Local display, Web terminal and mobile APP, with live power-distribution topology and real-time video.
Built to stay up
Fanless ARM Linux collector with dual watchdog and full-port surge protection; MTBF above 1.2 million hours.
Dynamic environment monitoring at every scale
The FO-MC4.0 dynamic environment monitoring system covers the same four deployment scales your infrastructure grows through, from one cabinet to a full containerized room.
Integrated cabinet
ETC, BBU, outdoor cabinets and integrated traffic cabinets monitored as self-contained units.
Small and medium rooms
Base stations, substations, education and health, government and bank branch computer rooms.
Single-row cold aisle
Contained single-row aisles with row-level power, environment and access monitoring.
Double cold aisle
T-block and IDC modular rooms, outdoor containers, power containers and energy-storage charging boxes.
One collector, one unified platform
- Unified DCIM view · Real-time operation parameters and status of the power, environmental, security, IT asset and energy systems on one operating platform.
- Asset, capacity and energy · Manage data center assets, capacity and energy consumption with unified operation and maintenance.
- One integrated collector · No server, operating system or database required; lower configuration cost and unmanned operation.
- Live topology · Real-time power-distribution topology display: red is on, green is off; real-time video on the Web.
- Reports on demand · Rich customized historical data report query and export.
- Rapid replacement · With the S90 system every configuration is backed up server-side, so a collector swap is minutes, not hours.
From field sensor to mobile APP
One integrated data collector links UPS, electricity meters, precision cooling, leak, temperature-humidity and smoke sensing, CCTV, access control, battery monitoring and U-position acquisition, and serves them to Web, APP and industrial screens.
Bank-vault-grade door management
Proven in more than 5,000 vault outlets with over 1 million access control products in long-term online operation, built on a certified cryptographic production line.
32 doors, one controller
Single-controller management of 32 doors with dual-controller hot backup.
Anti-copy card reading
Super-strong anti-interference reading with anti-copy technology and access-and-video linkage capture.
0.2 W controller
Ultra-low-power access controller with a double-watchdog circuit design that never crashes.
Hardened hardware
Wide voltage, wide temperature and humidity; moisture-proof, dust-proof and lightning-proof.
Certified production
Designated-unit certificate for commercial cryptographic product production, with software and hardware localization.
Main and backup servers
Dual access servers over TCP/IP down to door, elevator and fingerprint field devices.
Temperature and humidity, any mounting, any link
- Every installation form · 86-box, cabinet, magnetic and wall-mounted sensor formats for room and rack placement.
- Four communication methods · RS485, Zigbee, LoRa and NB-IoT, matched to the scenario and cabling budget.
- Wireless LoRa option · Battery-friendly wireless temperature and humidity sensing with the edge computing gateway.
- High precision, low power · High-accuracy, high-reliability, low-power sensing characteristics across the family.
Where FO-MC4.0 is deployed
Scope your monitoring platform
Share your room count, cabinet layout and measurement points. Our engineers respond with a complete FO-MC4.0 configuration and quotation.
